Acting as an Intelligent Power Gateway, TouchThink Industrial Mini PC Empower the Safe and Efficient Operation of Power Systems

TouchThink Industrial Computing Solution
TouchThink Multi-functional Industrial Control Computer – TPC14-AIoT, specially designed to meet the demands of the power industry.

TPC14-AIoT Multifunction Industrial Mini PC
Comprehensive Interface Access and Data Acquisition
The TPC14-AIoT comes with on-board terminal interfaces including 6×RJ45, 8×USB, 6×HDMI ports, as well as 10×COM, 2×CAN and 8×GPIO, and has built-in industrial control protocols. This means a single TouchThink industrial mini computer can connect to various types of sensors, electric meters and intelligent devices without external converters, greatly reducing the integration difficulty and deployment costs of power systems.

Robust Edge Computing Capabilities
The TPC14-AIoT is equipped with the Rockchip® RK3588 octa-core flagship CPU, supporting a full range of edge computing functions including data collection, integrated analysis and anomaly handling. Paired with a 6 TOPS NPU, it enables the deployment of AI applications such as local fault diagnosis, load forecasting and power quality analysis algorithms, optimizing system safety and energy efficiency.

Power Edge Computing RK3588 All-in-one Panel PC Tablet

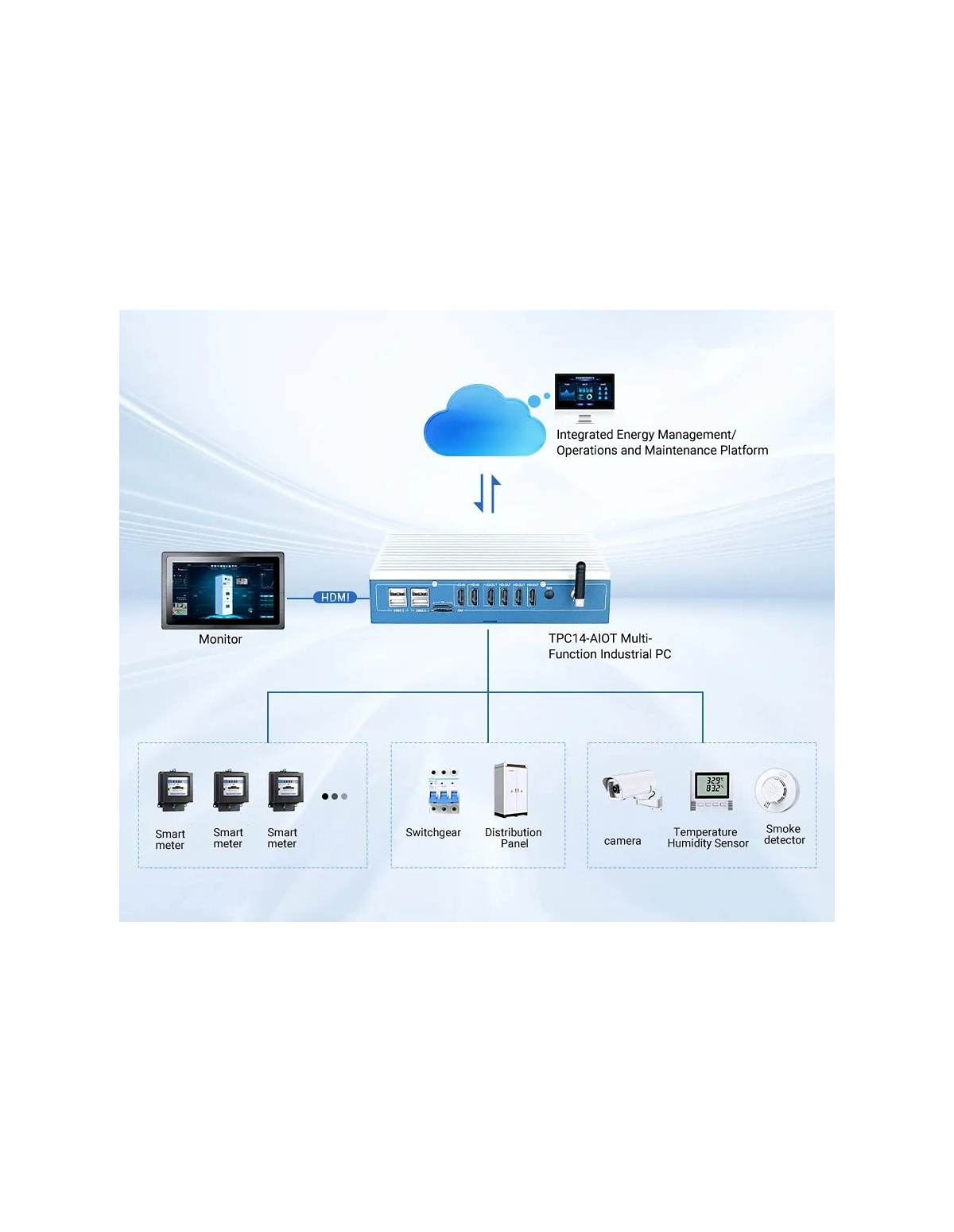

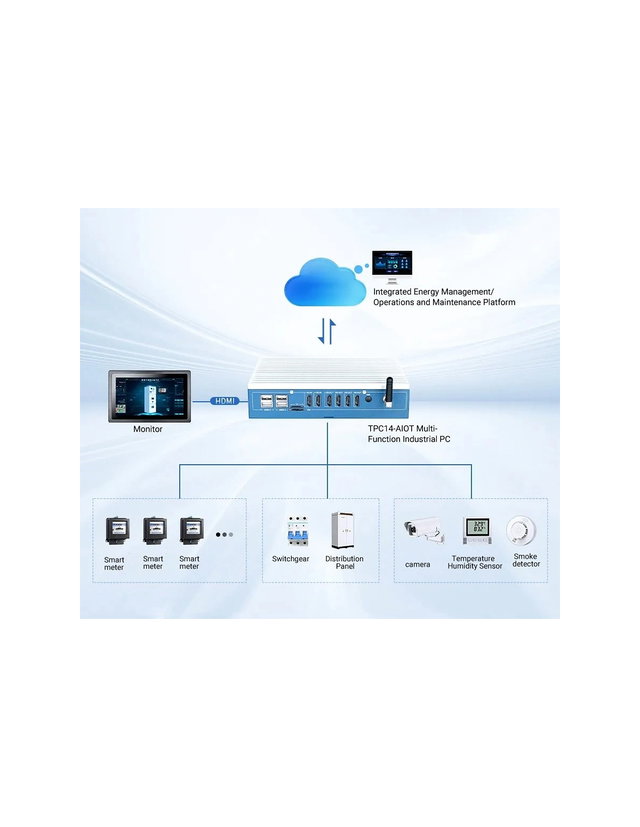

The TPC14-AIoT integrates multiple access methods including Ethernet, 4G, and WiFi/Bluetooth. It is equipped with 2×2.5G high-bandwidth network ports plus 4×Gigabit network ports, which not only enables real-time transmission over a wider range and with larger data volumes, but also receives scheduling instructions from cloud platforms, meeting the requirements for real-time monitoring and control of power grids.

Industrial-grade Stability and Reliability
The TPC14-AIoT supports a wide voltage power supply of 9V~36V and wide temperature operation from -20°C to 70°C. It features EMI/EMC electromagnetic interference resistance, ESD Level 4 electrostatic protection.
