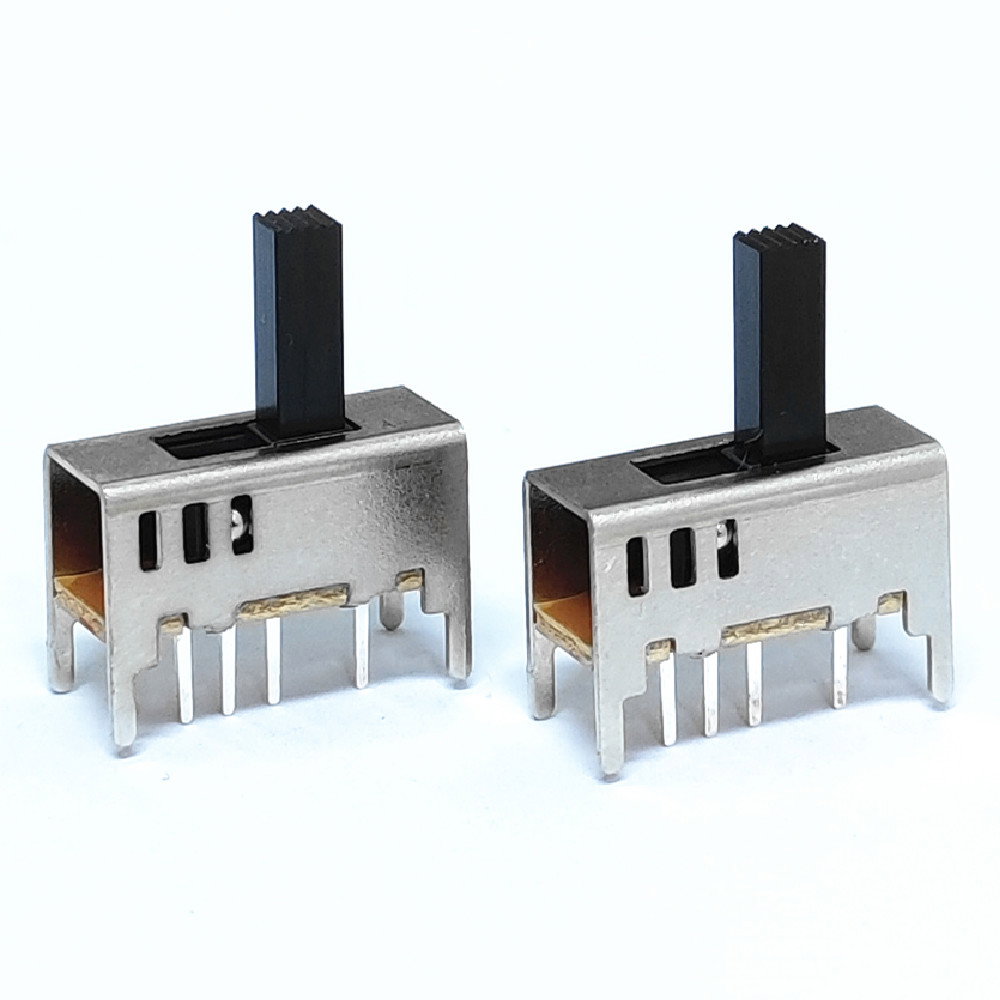

Horizontal Three Position Slide Switch 4 Pin

Horizontal Three Position Slide Switch 4 Pin

Horizontal three-position slide switch (SP3T) with 4 pins and through-hole mounting. It features a compact design and is available with different handle height options to suit various applications.

Rated at DC 30V 0.1A, ensuring stable performance in low-power electronic circuits.

Features a 1P3T (single pole, three throw) function for reliable multi-position switching.

Low contact resistance (≤100Ω) provides efficient signal transmission.

High insulation resistance (≥100MΩ) enhances electrical safety and durability.

Smooth actuation with an operating force of 250±100gf for consistent user control.

Compact sliding mechanism with a full travel distance of 2.0±0.3mm.

Designed for long-term use with a mechanical life of up to 10,000 cycles.

Operates reliably across a wide temperature range from -20°C to +70°C.

Standard actuator design supports easy integration into various device layouts.
