Product Details

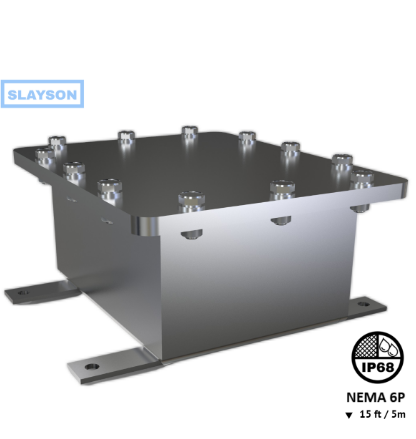

JUNCTION BOX (Click to enlarge image) Rating: 15ft, 5m

Material: Stainless Steel Type 316, Aluminum

Sizing: 06"x 06" to, 18"x 18"

Industries: Automation & Control, Infrastructure, Maritime, Oil & Gas, Renewable Energy, Tunnels & Underground


NEMA 6P, 4, 4X and IP68, IP67
Submersible up to 15ft / 5 meters
Manufactured from 14 gauge Type 316 Marine Grade Stainless Steel
Seams continuously welded and ground smooth
Single piece Neoprene Gasket
316 Stainless Steel Screws and Hardware
Mounting brackets on enclosure rear for mounting
Grounding stud on enclosure body for Earthing and Bonding
Weld Studs installed for mounting Internal Backing Plates and Terminal Blocks
High Impact and Crush Resistance
Custom Sizes Available on request

# 3 Polish Finish
Paint and Powder Coat Finishes available in a variety of colors

Hinged Lid
Internal Back Plate
Hinged Internal Panel
IP68 Stainless Steel Cable Glands / Cord Grips
Welded in Place 316 Stainless Steel Threaded Bosses
EMC / EMI / RFI Shielding (MIL-STD-285)
Flurosilicone (FVMQ) Gasket resistant to Fuels and Oils
Clear Optical Viewing Lid

Modifications and Customization:

SLAYSON excels at modifying and customizing all our products to meet your exact specifications. Contact our experienced Engineers about your project specific solution.
